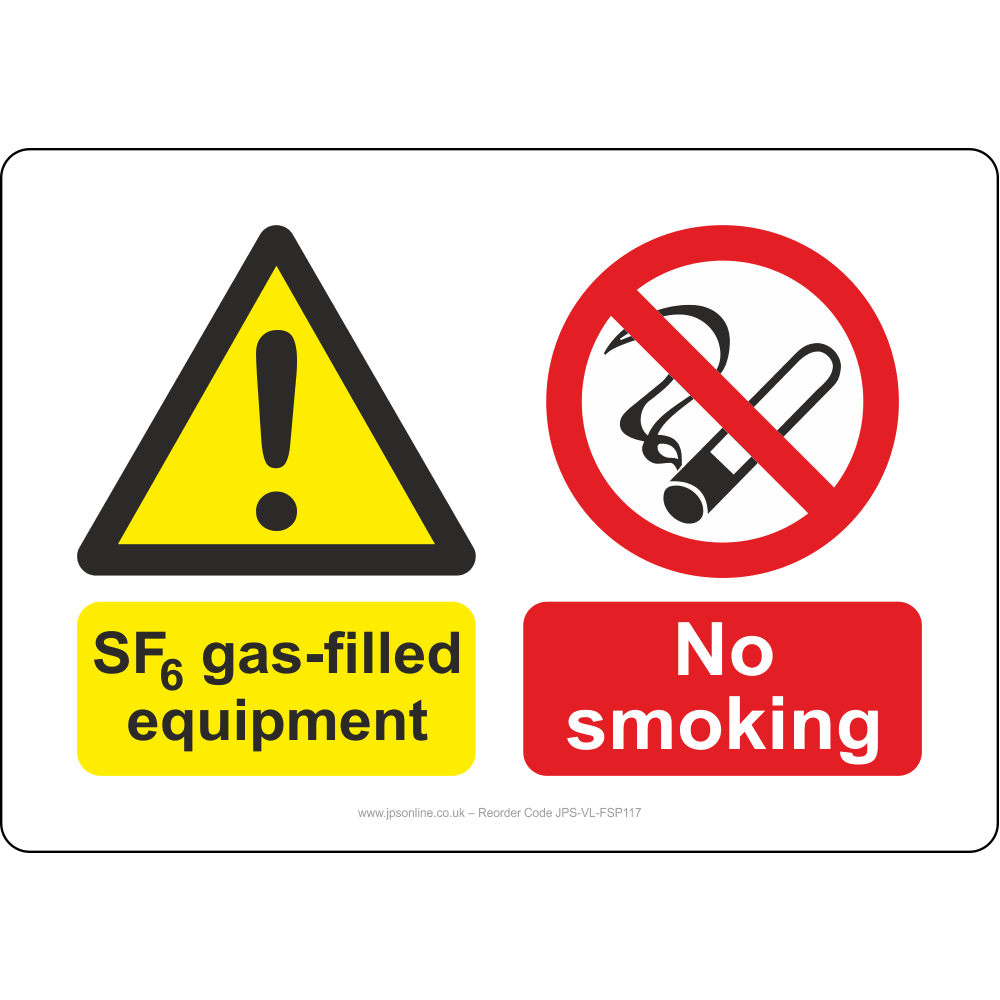

SF6 Gas-Filled Equipment/No Smoking Sign

Download PDF Templates

Please review the Viewing Distances Guide for the product before installation. You can also download your Free Template to assist with sign placement.

Download the A3 fitting guide template
Download the A4 fitting guide template
Download the A5 fitting guide template

Vinyl self-adhesive

1. Select the position to adhere your sign, (remember to consider the viewing distance and height of the sign) See Viewing Distances Guide.
2. Ensure surface is free from Grit, Dirt and Dust.
3. Clean the fixing surface to remove Grease, Grime and Oxides.
4. Fitting your sign, when positioned use firm strokes from the centre of the sign radiating in straight lines to the outer edge. Ensuring removal of all air.

Mounted Signs. Self Adhesive fixing

1. Self adhesive foam fixing pads are supplied internal use only.
2. We recommend screw fixing for all signs A5 size and larger.

Mounted Signs. Screw fixing

1. Select the position to fix your sign, (remember to consider the viewing distance and height of the sign) See Viewing Distances Guide.
2. Using your Free template mark the position of the holes required on the fixing surface. Choice of two vertical holes RED option, two horizontal holes BLUE option or four corner holes GREEN option.
3. Drill 6mm holes as required, insert wall fixing plugs. Fix sign using the screws remembering to put the screw through the screw head cover before tightening the screws.
4. Self Adhesive Pads are included with your mounted sign

Fixing Packs

SKU. JPS-ACC-105 (FP2) 2x wall plugs, 2x #4 x 40mm PZ CS screws, 2x Caps for screw head covers 14mmx4mm White

SKU. JPS-ACC-106 (FP4) 4x wall plugs, 4x #4 x 40mm PZ CS screws, 4x Caps for screw head covers 14mmx4mm White

SKU. JPS-ACC-107 (FP6) 6x wall plugs, 6x #4 x 40mm PZ CS screws, 6x Caps for screw head covers 14mmx4mm White

Choose the right material for the job

Dilite - is a lightweight but strong aluminium composite panel with a polyethylene core. It is used for interior and exterior flat signage applications.

Foamex - is a renowned brand of expanded vinyl material. Foamex sheeting is crafted by compressing PVC foam, resulting in a robust board known for its durability. This rigid and hardwearing material is remarkably lightweight, making it perfect for various sign and display applications.

Foamex sheeting boasts water repellent properties, making it weatherproof and resistant to moisture ingress, which is ideal for outdoor use. It comes with a UV stability warranty, guaranteeing up to 7 years of outdoor and 10 years of indoor use without fading.

HIPS – High Impact Polystyrene, it is a tough, strong, rigid plastic material with high impact strength. Yes, it is versatile and recyclable.

TroLase - is a premium brand of laserable plastic crafted for superior laser engraving performance. With a vibrant coloured or metallic top layer and a distinctive acrylic core, these laser materials are UV stable, ensuring durability for outdoor applications. TroLase also offers a thin, flexible option with an adhesive backing, perfect for creating high-quality labels and stickers.

Vinyl - is a versatile material offering a broad range of durability options, from single-use applications to a 10-year lifespan for exterior use.

We meticulously craft our products to the highest standards and latest technology to guarantee optimal performance for their intended purpose. Please review our fitting guide to ensure correct installation, minimising any potential issues.
